Run LN Operator on your node

Built for an LND node on a Raspberry Pi, but works anywhere LND's REST API is reachable. About 15 minutes end to end.

What you need

• A running LND node with REST enabled (Bitcoin Core or Neutrino backend).
• Read access to the node's tls.cert and an admin.macaroon.
• Python 3.10+ and git on the same host.
• Optional: a Telegram bot token + chat ID for alerts and the daily summary.

1 · Install

# clone and set up a virtualenv
git clone https://github.com/lnbright/ln-operator.git
cd ln-operator
python3 -m venv venv
venv/bin/pip install -r requirements.txt

# make the CLI callable from anywhere
sudo ln -s "$PWD/ln-operator" /usr/local/bin/ln-operator

2 · Check the install

Run ln-operator --help. If you see the full subcommand list, the wrapper and virtualenv are wired up correctly:

ln-operator --help

usage: ln-operator [-h] [--no-telegram] command ...

LN Operator — Lightning Node Channel Management

positional arguments:
  command             See 'ln-operator <command> --help' for details
    pipeline          [automated] Run full pipeline: adjust_fees →
                      rebalance_channels → sync_routing → healthcheck
    plan              [feature] Channel investment plan — reads wallet
                      balance, proposes allocation
    status            [feature] Quick node overview with channel balance bars
    history           [feature] Show fee revenue, rebalance stats, and alerts
    adjust_fees       [debug] Adjust channel fee rates from balance ratios
    rebalance_channels
                      [debug] Move sats from overfull to depleted channels
    sync_routing      [debug] Sync routing events from LND into the database
    healthcheck       [debug] Snapshot channel states, check problems, alert
    backup            [automated] Push channel.backup to remote host
    overwrite_fee     [feature] Pin a channel's outbound fee
    clear_fee         [feature] Remove a fee pin so auto-adjust resumes
    recompute_signals [automated] Refresh slow per-channel signals (nightly)

options:
  -h, --help          show this help message and exit
  --no-telegram       Skip Telegram notifications

3 · Configure

Copy the template to .env and fill it in with your own node's details — this is the only file you must edit:

cp .env.example .env
nano .env

What each key means:

# ── LND connection (required) ──────────────────────────
LND_REST_URL=https://127.0.0.1:9000          # your LND REST endpoint
LND_CERT=/home/lnd/tls.cert                  # path to LND's TLS cert
LND_MACAROON=/.../admin.macaroon             # admin macaroon (read/write)

# ── Telegram alerts (optional) ─────────────────────────
TELEGRAM_BOT_TOKEN=                          # from @BotFather
TELEGRAM_CHAT_ID=                            # your chat id (via @userinfobot)

# ── Off-site channel.backup upload (optional, recommended) ──
BACKUP_SOURCE_PATH=/home/lnd/.../channel.backup  # file to push
BACKUP_SSH_HOST=                             # destination host (blank = disabled)
BACKUP_SSH_USER=
BACKUP_SSH_PORT=22
BACKUP_DEST_DIR=                             # remote directory

# ── Dashboard bind (optional) ──────────────────────────
DASHBOARD_BIND_IP=127.0.0.1                  # or e.g. set your Tailscale IP for tailnet access
DASHBOARD_PORT=4000

Anything you leave blank falls back to the defaults in config.py. Tuning knobs (fee margin, rebalance budgets) live there too.

Then initialise the database and confirm the connection:

venv/bin/python3 db.py
ln-operator status        # should print your node + channel overview

4 · Automate

Run the pipeline every 2 hours and refresh slow signals nightly:

# crontab -e
0 */2 * * * cd /path/to/ln-operator && ./ln-operator pipeline 2>&1
15 3 * * * cd /path/to/ln-operator && ./ln-operator recompute_signals >> logs/signals.log 2>&1

5 · The ln-operator skill

LN Operator ships a Claude Code skill that turns the accumulated operating judgment — what to check, what's noise vs. a real problem — into a reusable agent. Drop it into your Claude Code skills folder, point it at your node, and get a reasoned daily health read without rebuilding that knowledge yourself.

# install the skill
unzip ln-operator-skill.zip -d ~/.claude/skills/
# then in Claude Code:
/lnd-node-triage

6 · Dashboard (optional)

For a quick look, just run it:

venv/bin/python3 dashboard/app.py

To keep it running across reboots, install the bundled systemd unit. It ships in services/lnd-dashboard.service — copy it into place, adjust the paths and user to match your install, then enable it:

# 1. copy the unit into systemd
sudo cp services/lnd-dashboard.service /etc/systemd/system/

# 2. edit User=, WorkingDirectory= and ExecStart= to match your install
#    path and virtualenv (the shipped file assumes /home/pi/ln-operator)
sudo nano /etc/systemd/system/lnd-dashboard.service

# 3. reload systemd, enable at boot, and start it now
sudo systemctl daemon-reload
sudo systemctl enable --now lnd-dashboard

# 4. confirm it's up, and follow the logs
systemctl status lnd-dashboard
journalctl -u lnd-dashboard -f

👉 It binds to 127.0.0.1 by default; set DASHBOARD_BIND_IP in .env to your preferred private network IP address — e.g. your Tailscale IP for tailnet access.

⚠️ We suggest serving it on a private network only — Tailscale or LAN. Never port-forward it to the open internet, as it has no authentication.

7 · Dashboard in detail

The dashboard — ⚡ LND Health — is a single scrolling page that reads live from LND plus the operator database. It refreshes on load; hit ↻ Refresh in the header for a fresh fetch. Here's what every card shows, top to bottom.

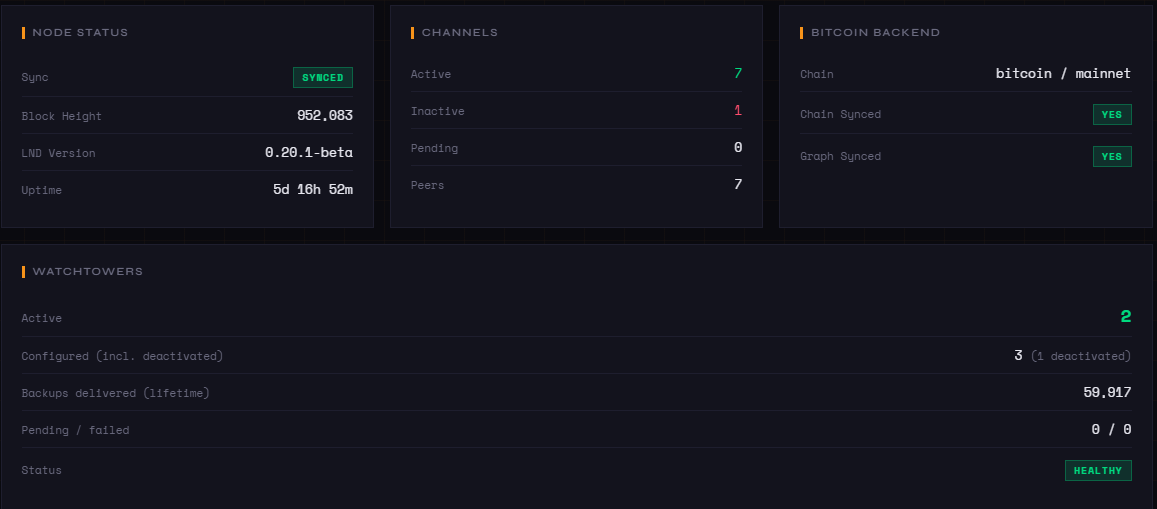

Node status, channels & backend

• Node Status — chain sync state, current block height, the LND version you're running, and process uptime. Synced in green is what you want.
• Channels — active / inactive / pending channel counts and connected peers. Any inactive count turns red, since an offline channel can't earn or route.
• Bitcoin Backend — which chain and network LND is on (e.g. bitcoin / mainnet) and whether the chain and the graph are both synced. The graph is the network map used for routing and rebalancing.
• Watchtowers — your wtclient towers. Active is the count actually accepting new sessions; Configured counts every tower including deactivated ones; Backups delivered is the lifetime total of state updates shipped off-site. The badge is healthy only with ≥1 active tower and zero failed backups.

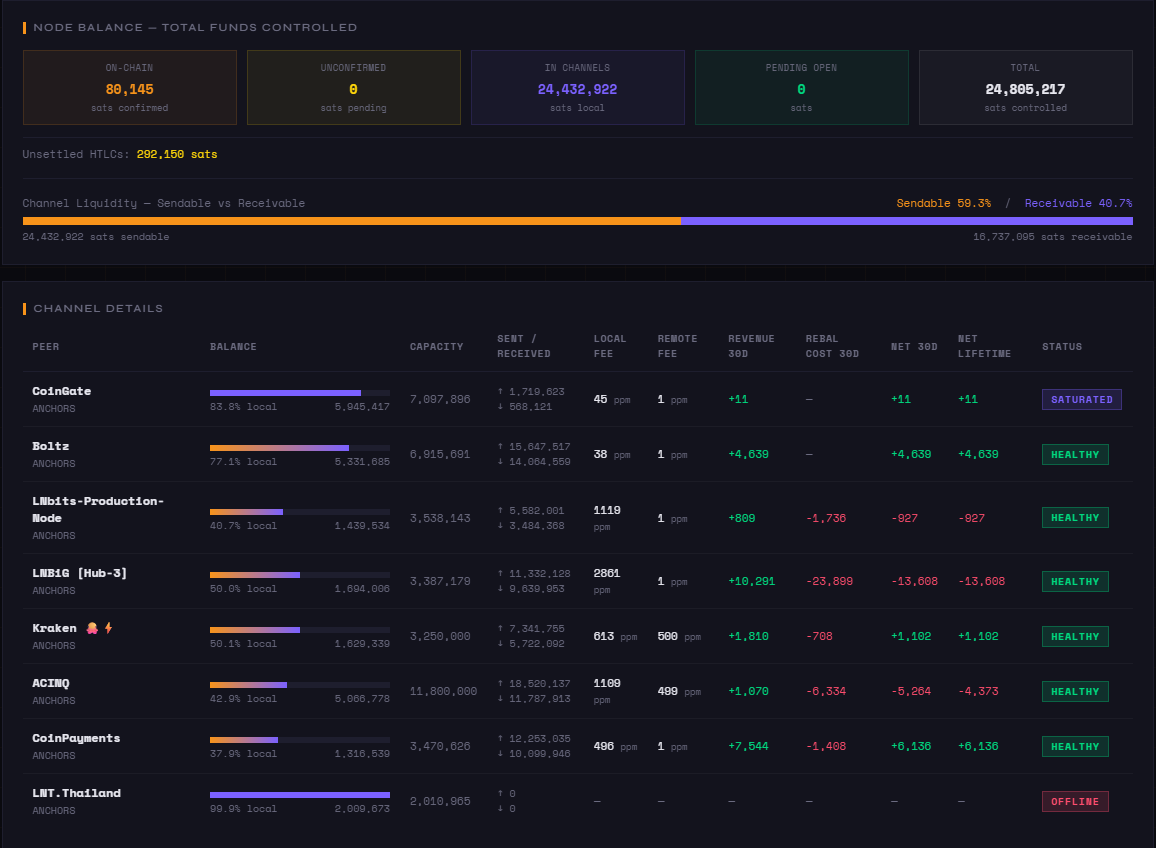

Node balance & channel details

• Node Balance — Total Funds Controlled — every sat the node holds, split across on-chain confirmed, unconfirmed, in channels (local/sendable), pending open, and the total. Unsettled HTLCs (sats mid-flight) are called out separately so the total always reconciles.
• The Channel Liquidity bar underneath is the whole node's sendable vs. receivable split — outbound (orange) on the left, inbound (purple) on the right. A balanced node routes in both directions.
• Channel Details — one row per channel. The balance bar is colour-coded: red when depleted (<20% local), blue when saturated (>80% local), green when healthy. Then capacity, lifetime sent/received, your outbound fee (local) and the peer's (remote) in ppm, and the operator P&L columns: Revenue 30d (fees earned), Rebal Cost 30d (what you paid to keep it filled), Net 30d (revenue − cost), and Net Lifetime. Green nets earn; red nets cost more than they make.

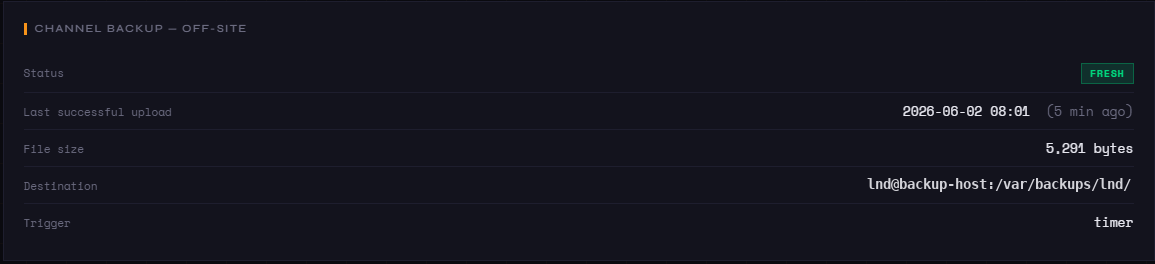

Off-site channel backup

Tracks the backup job that pushes channel.backup to a remote host. Status is fresh when the last upload succeeded recently, stale if it's overdue, and last attempt failed on error. It shows when the last good upload landed, the file size, the destination, and what fired it (timer for the systemd timer, vs. a manual run). This is your loss-of-funds insurance — watch that it stays fresh.

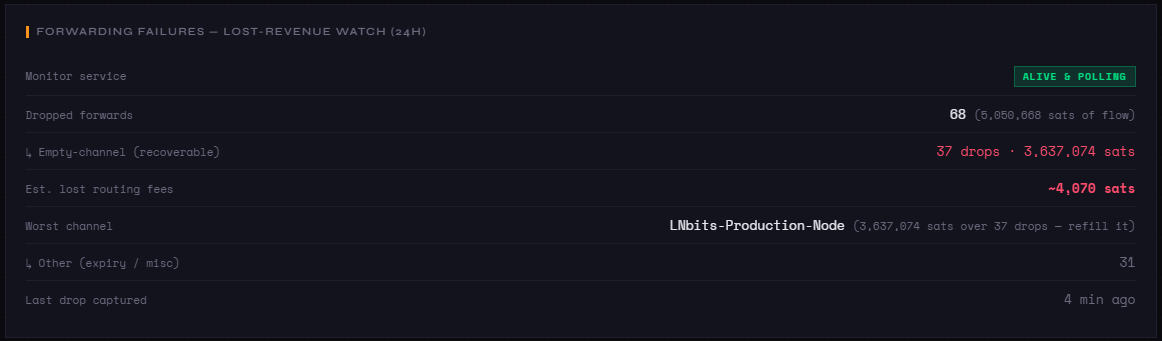

Forwarding failures — lost-revenue watch

Routing attempts that your node dropped in the last 24h — fees you could have earned but didn't. These events are live-only (LND persists them nowhere), so the Monitor service badge matters: if the htlc_monitor daemon is down, you're blind, not clean. It separates empty-channel drops (recoverable — refill that channel and the revenue comes back) from fee-too-low and expiry/misc causes, estimates the lost fees, and names the worst channel to top up first.

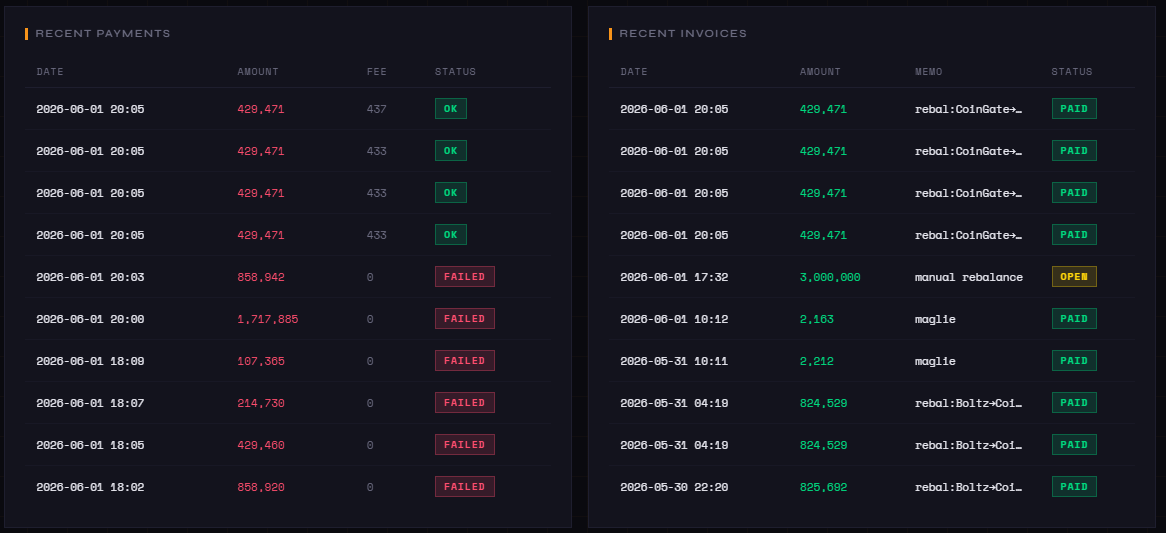

Recent payments & invoices

• Recent Payments — outbound payments the node made (mostly rebalances), with amount, routing fee, and OK/FAILED status. Failed attempts cost nothing but signal routes that wouldn't complete.
• Recent Invoices — inbound: settled invoices and any still open. Memos like rebal:… are the node's own circular rebalances; others are real receives.

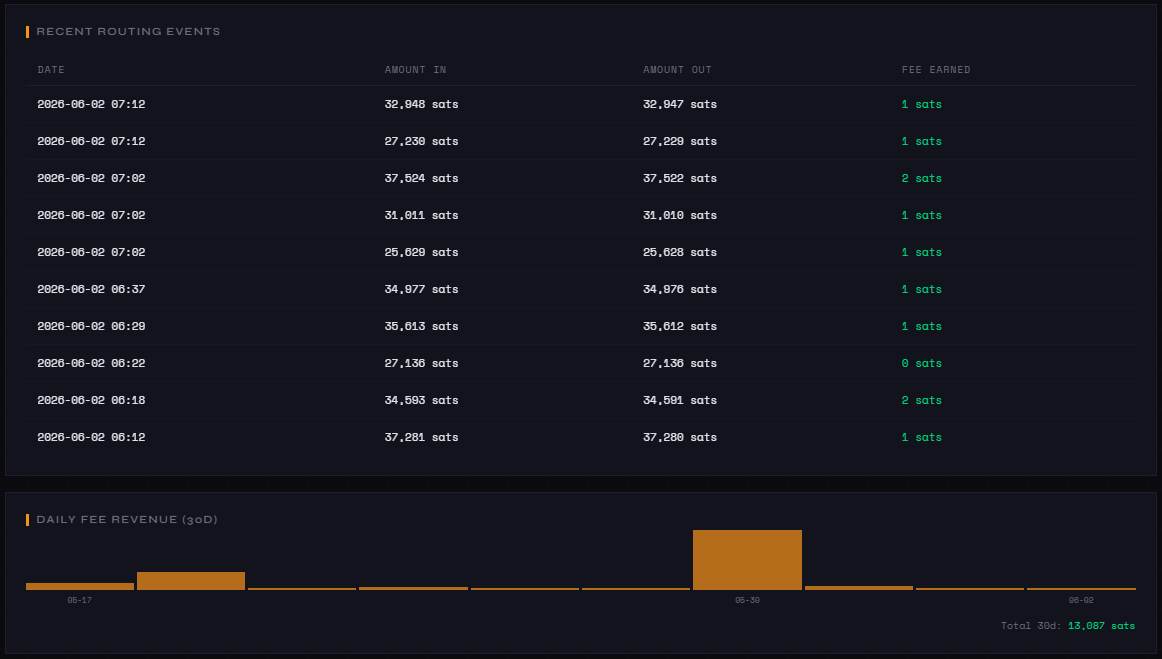

Routing events & daily revenue

• Recent Routing Events — successful forwards through your node: amount in, amount out, and the difference you kept as a fee earned. This is the node doing its job.
• Daily Fee Revenue (30d) — a bar per day of routing fees earned, with the 30-day total. Useful for spotting which days actually moved volume.

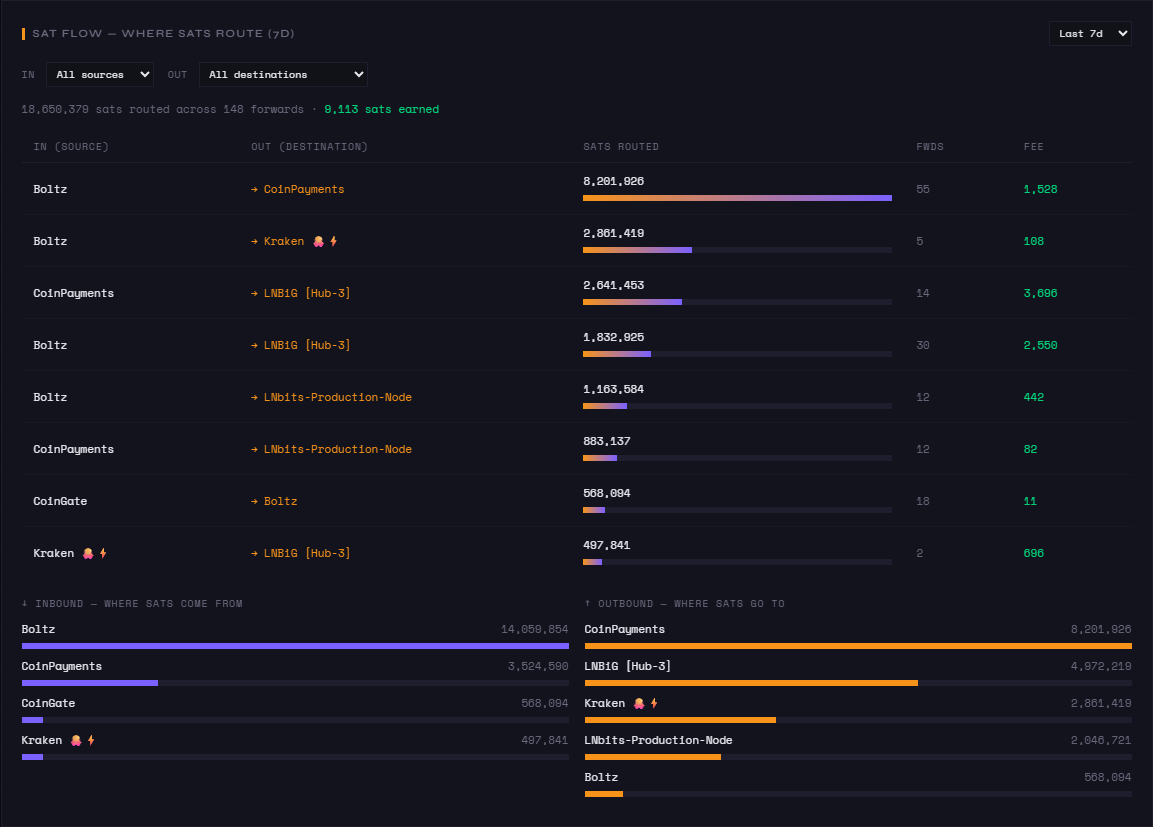

Sat flow — where sats route

A routing map built from the forwarding log: it answers where does liquidity enter, and where does it leave? The dropdown switches the window between 30d, 7d, and all time, and the header sums it up — total sats routed, number of forwards, and fees earned in that window. The IN and OUT dropdowns narrow the view to a single source and/or destination peer, so you can isolate one channel's routes; leave them on All sources / All destinations for the full picture.

• The table ranks the busiest in → out peer pairs — the actual routes sats took through your node — with sats routed (bar-scaled to the biggest pair), the forward count, and fees earned on that route.
• ↓ Inbound — where sats come from totals receipts per source peer: who feeds liquidity into your node.
• ↑ Outbound — where sats go to totals sends per destination peer: where that liquidity leaves.

Read together, this shows your node's natural flow direction — useful for deciding which channels to keep filled on the inbound side and which earn their keep on the outbound side.

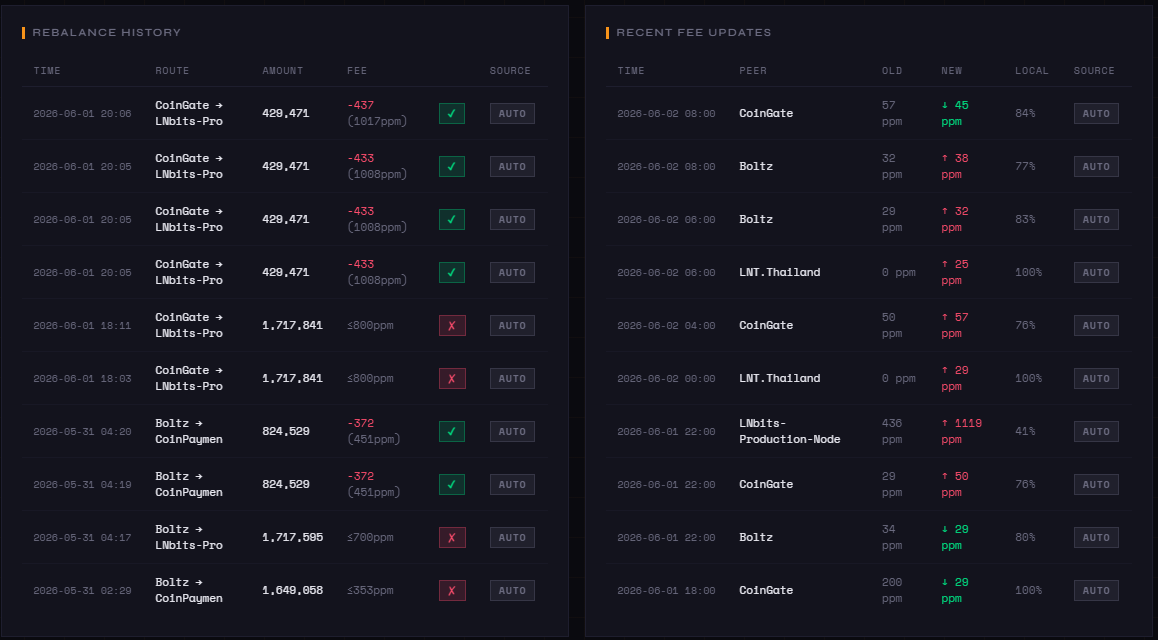

Rebalance history & fee updates

• Rebalance History — every rebalance the pipeline attempted: route (source → target), amount, fee paid with effective ppm, success (✓/✗), and whether it was auto or manual. Failed rows show the ≤Nppm budget that was tried but not spent.
• Recent Fee Updates — automatic fee changes per peer: old → new ppm (↑ raised when local liquidity is scarce, ↓ lowered to attract flow), the channel's local ratio at the time, and whether it was an auto adjust or a 📌 pin you set manually.

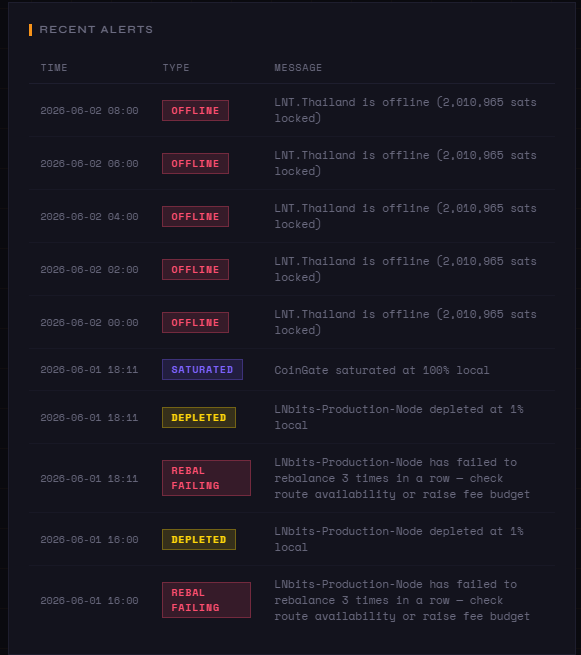

Recent alerts

The healthcheck's running log — offline peers (with sats locked behind them), depleted and saturated channels, and rebal failing when a channel can't be refilled after repeated tries. These are the same alerts that go to Telegram if you've wired it up; an empty card means all clear.
